PARTS LIST

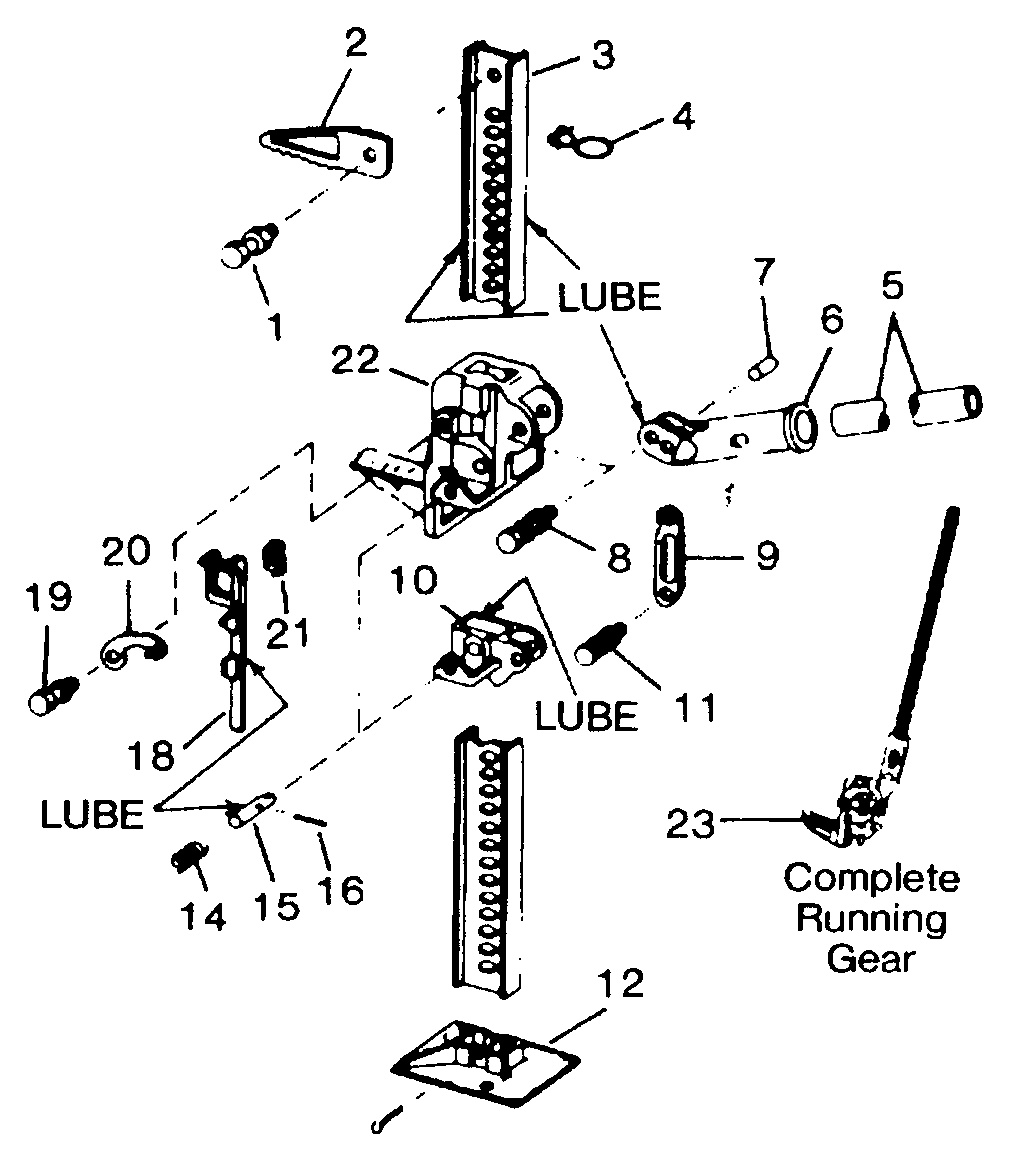

Following are the parts for all Hi-Lift Jacks. You can order parts from your dealer. You can also order parts directly from the Hi-Lift Jack Company by calling (800) 233-2051, or (812) 384-4441 from outside the USA.
1. Top Clamp-Clevis Bolt

2. Top Clamp-Clevis

3. Steel Standard (Bar)

4. Handle Spring Clip

5. Steel Handle w/ Cotter Pin

6. Handle Socket

7. Pitman Pin

8. Hex Bolt

9. Pitman

10. Small Runner

11. Hi-Lift Shear Bolt

12. Foot Piece w/ Cotter Pin

14. Climbing Pin Spring (2 required)

15. Climbing Pin (2 required)

16. Cross Pin (2 required)

18. Reversing Switch Cam Bar and Spring

19. Cap Screw w/ Washer

20. Reversing Latch

21. Reversing Switch Spring

22. Large Runner

23. Running Gear (assembled)

Safety Label also available.

Not pictured:

E-J part #80-153 5/8" bent pin, cotter and swivel hub for Equipment Agricultural Jack.

FK-1 (FIX-IT KIT)-includes the following: two each of parts 14, 15, 16, one 11 & a tube of lubricant.

個々のパーツはジャッキのモデルによって多少異なりますが番号と名称は共通です。

Hi-Lift Jack Service Parts

鋳鉄

鋳鉄/鋼鉄

Parts can be obtained by calling (800) 233-2051.  All prices include prepaid freight within the continental U.S.A and come with a 1 year warranty against defective materials or workmanship.

鋳鉄ジャッキのパーツ価格

Item #

Mfg. #

Description

Cost

1

20-21

Top Clamp-Clevis Bolt & Nut

$   2.28

2

C7

Cast Top-Clamp Clevis (Red)

12.08

3

B42C

42" Steel Bar (Red)

16.07

.

B48C

48" Steel Bar (Red)

18.57

.

B60C

60" Steel Bar (Red)

20.97

4

31

Handle Clip Spring

2.81

5

15-25

Steel Handle W/ Cotter Pin

9.85

6

C2

Cast Handle Socket (Red)

15.93

7

30

Pitman Pin

2.20

8

16A-17

Handle Socket Bolt & Nut

2.28

9

C3

Cast Pitman (Red)

12.08

10

C1

Small Runner (Red)

15.93

11

18A-19

Safety Shear Bolt & Nut

2.92

12

C6-24

Cast Foot Piece W/ Cotter Pin

14.72

14

28

Climbing Pin Spring

2.20

15

29

Climbing Pin

4.82

16

26

Cross Pin

2.20

18 & 21

C5-27A

Red Reversing Switch & Spring

10.41

19

22A

Cap Screw W/ Washer

2.28

20

C4

Reversing Latch (Red)

9.77

21

27A

Reversing Switch Spring

2.48

22

C10

Large Runner (Red)

20.97

23

RGC

Running Gear (Assembled) (Red)

41.30

.

FK-1

Fix-It-Kit (includes 2 each parts 29, 26, 28, one 18A-19, and a tube of lubricant)

13.74



鋳鉄/鋼鉄ジャッキのパーツ価格

Item #

Mfg. #

Description

Cost

1

20-21

Top Clamp-Clevis Bolt & Nut

$   2.28

2

S7

Cast Top-Clamp Clevis (Black)

11.58

3

B36P

36" Steel Bar (Black)

16.07

.

B42P

42" Steel Bar (Black)

16.07

.

B48P

48" Steel Bar (Black)

18.57

.

B60P

60" Steel Bar (Black)

20.97

4

31

Handle Clip Spring

2.81

5

15-25

Steel Handle W/ Cotter Pin

9.85

6

S2

Cast Handle Socket (Black)

13.95

7

30

Pitman Pin

2.20

8

16A-17

Handle Socket Bolt & Nut

2.28

9

S3

Cast Pitman (Black)

9.77

10

C1

Small Runner (Black)

15.93

11

18A-19

Safety Shear Bolt & Nut

2.92

12

S6-24

Cast Foot Piece W/ Cotter Pin

12.07

14

28

Climbing Pin Spring

2.20

15

29

Climbing Pin

4.72

16

26

Cross Pin

2.20

18 & 21

C5-27A

Black Reversing Switch & Spring

10.41

19

22A

Cap Screw W/ Washer

2.28

20

C4

Reversing Latch (Black)

9.77

21

27A

Reversing Switch Spring

2.48

22

C10

Large Runner (Black)

20.97

23

RGP

Running Gear (Assembled) (Black)

37.63

.

FK-1

Fix-It-Kit (includes 2 each parts 29, 26, 28, one 18A-19, and a tube of lubricant)

13.74

Prices shown are subject to change.
